Laser welding is widely used in complex and abnormal welding processes: kitchen cabinets, stair lifts, shelves, ovens, stainless steel door and window guardrails, power distribution, various high-reflective metals and other industries. Welding is sturdy and fast, with a speed more than three times faster than traditional argon arc and plasma welding.

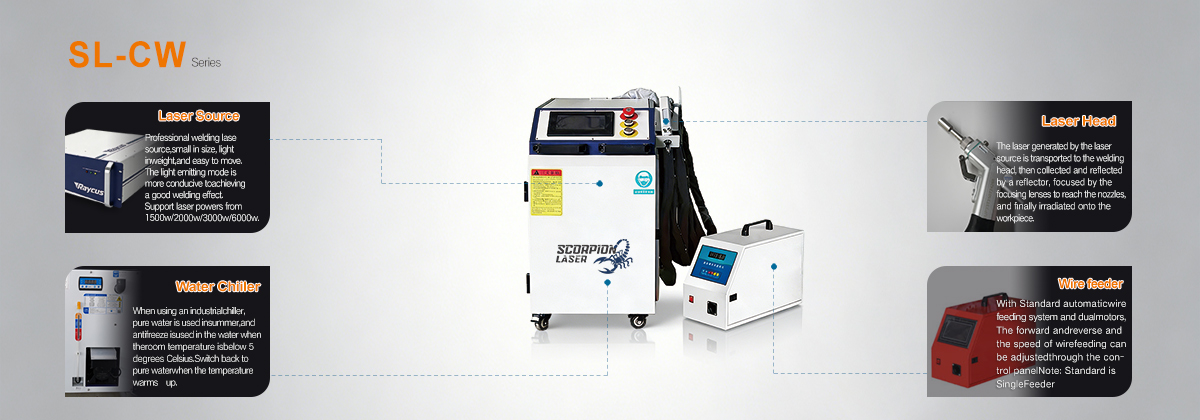

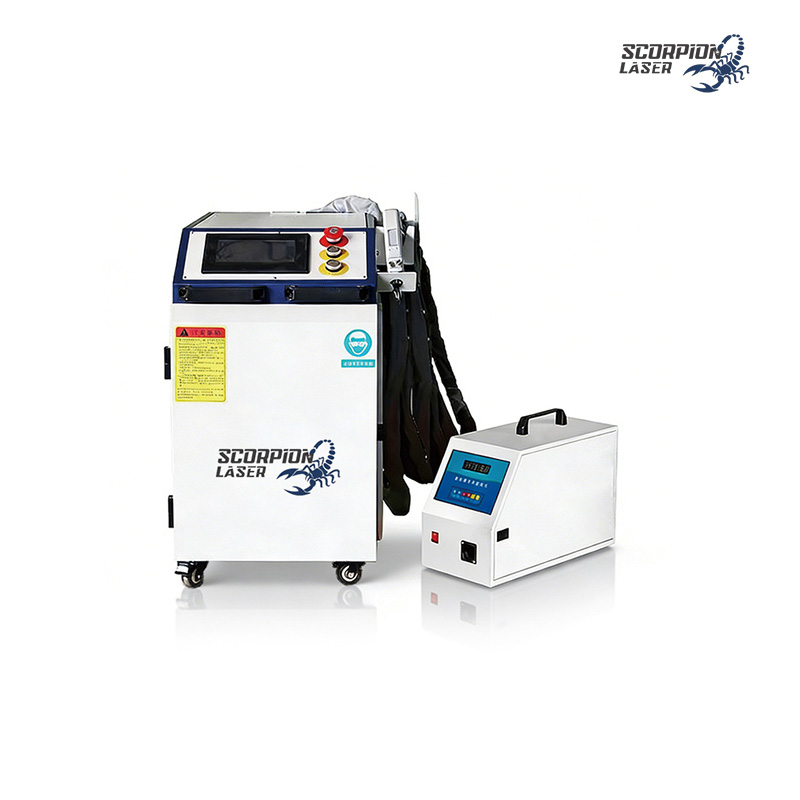

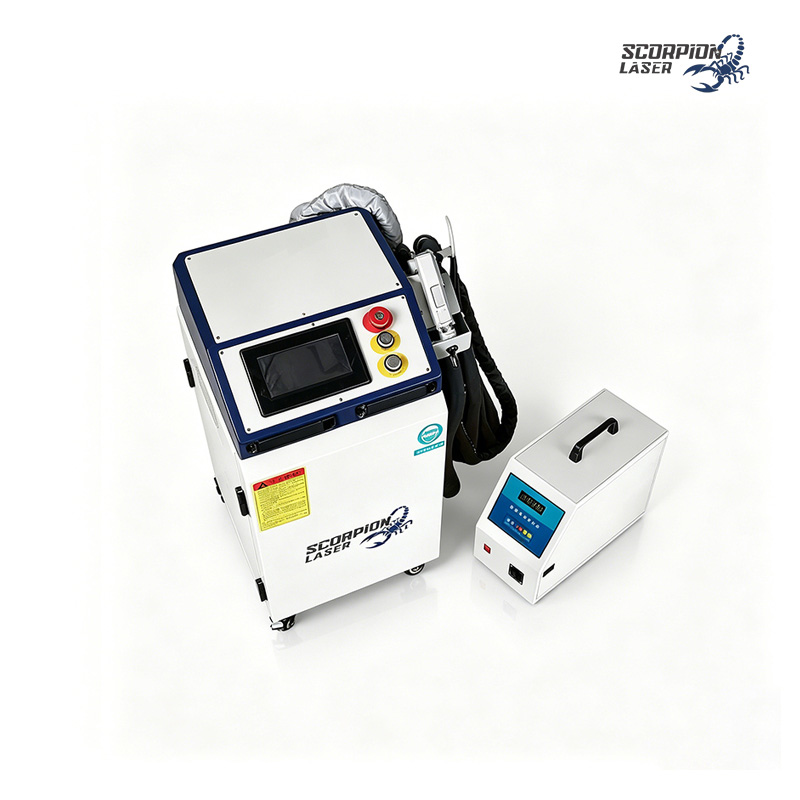

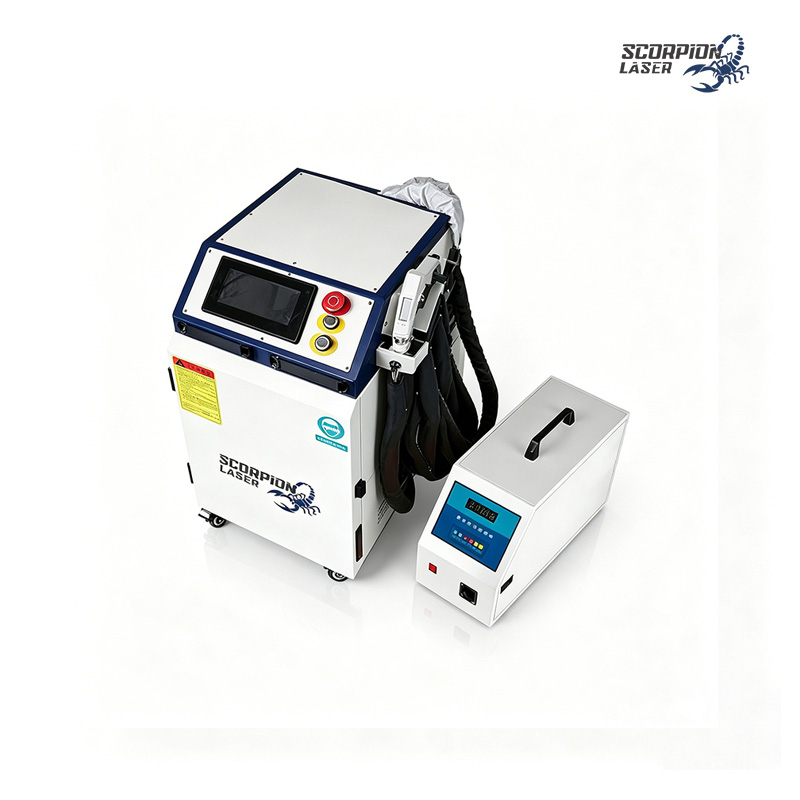

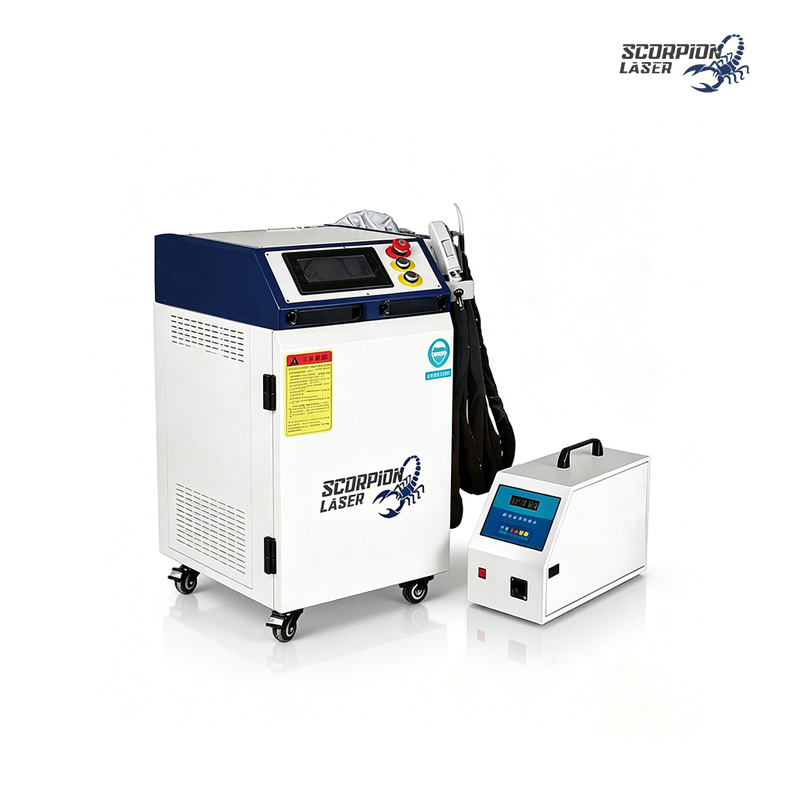

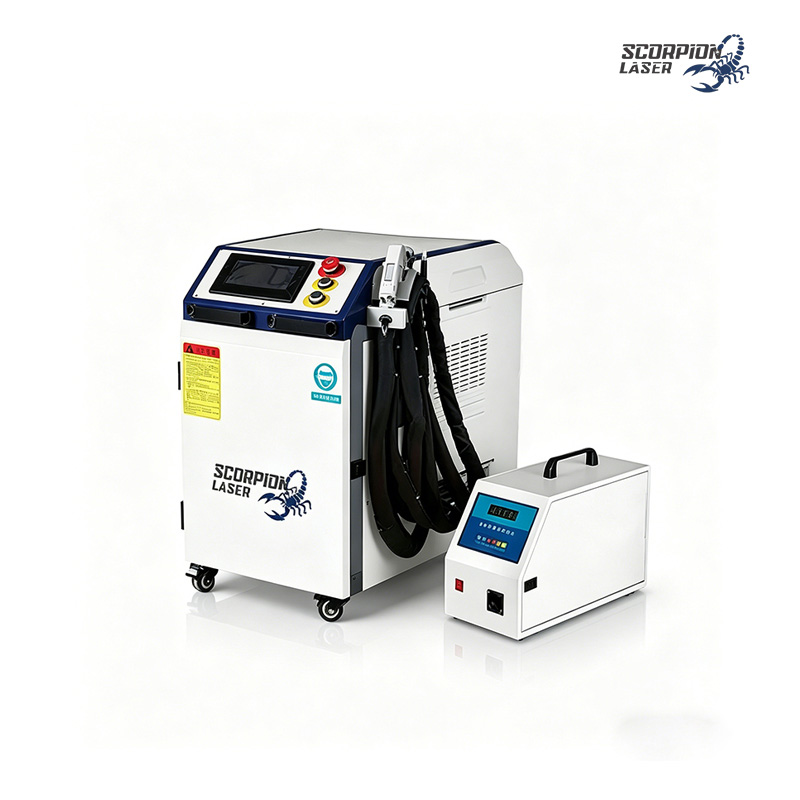

SL-CW 3-in-1 laser machine is a portable fiber laser device integrating laser welding, laser cleaning and laser cutting. With one main unit and a single laser source, it enables seamless switching among the three processes by quickly replacing the welding head, nozzle and lens.
Product Functions
· Laser Welding: Suitable for thin plates (0.3–6 mm) of carbon steel, stainless steel, galvanized sheet, aluminum alloy and more. It supports fillet welding, vertical welding and butt welding, and achieves one-side welding with double-sided formation.
· Laser Cleaning: Removes rust, paint, oil stains and oxide layers. Non-contact operation causes no damage to the base material and leaves no chemical residue.
· Laser Cutting: High-precision cutting for thin plates. The cuts are smooth and burr-free, capable of straight and curved cutting.
Specification | Details |
Model | SL-CW(1500W / 2000W / 3000W/ 6000W) |
Laser Medium | Yb-doped Fiber |
Maximum laser power | 1064nm±5nm |
Pulse Frequency | 5,000 ～ 10,000 Hz |
Fiber length | 10m-20m (Optional) |
Cooling Method | Water Cooling |
Automatic wire feed | 0.8-1.6mm stainless steel aluminium alloy |
Specified Voltage And Frequency | 220V/380V，50/60Hz |
Scorpion Laser Excellence: With 9 years of laser application expertise, we deliver Industry 4.0-ready equipment designed for durability.
Global Certifications: Our cleaning systems are CE and ISO certified, ensuring they meet rigorous international safety and quality standards.
3-Year Comprehensive Warranty: We stand behind our SL-CW series. If any parts break due to non-human issues, we ship new parts to you immediately.

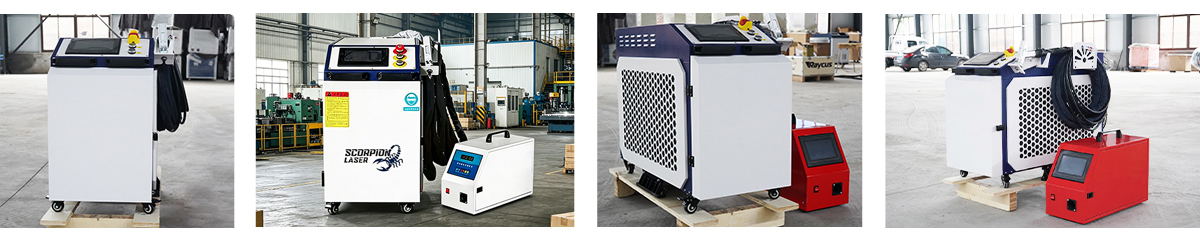

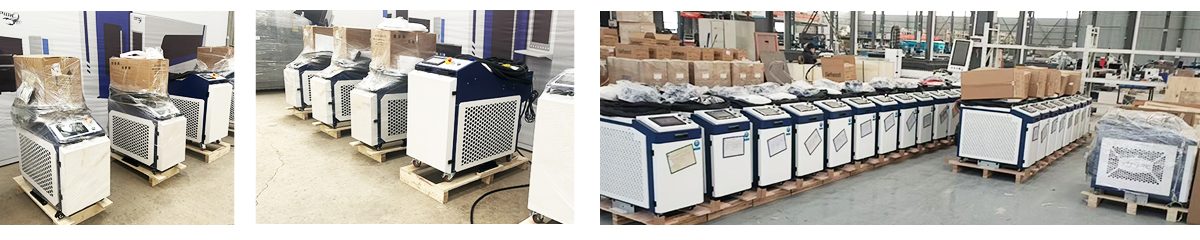

Secure Global Shipping: Every machine is packed in a fumigated wooden case with pearl wool and moisture-proof wrapping for safe arrival at your port.
Q: What is the maximum thickness for welding and cutting?
A: Welding range: 0.3–6mm metal plates; Cutting range: 0.5–3mm thin plates.
Q: Can it weld special positions such as corner and vertical seams?
A: Yes. It supports fillet welding, vertical welding and butt welding, and realizes one-side welding with double-sided forming.
Q: What can laser cleaning remove?
A: It can efficiently remove rust, paint, oil stains and oxide layers without damaging the base material.
Q: Are the cutting edges smooth?
A: Absolutely. The cutting surface is smooth and burr-free, no secondary polishing is needed.
