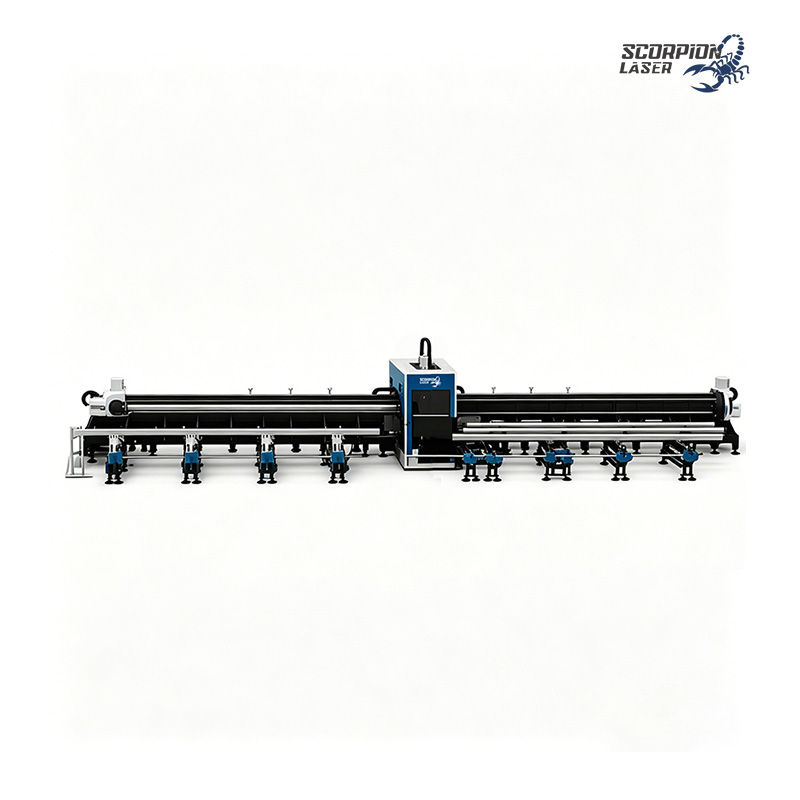

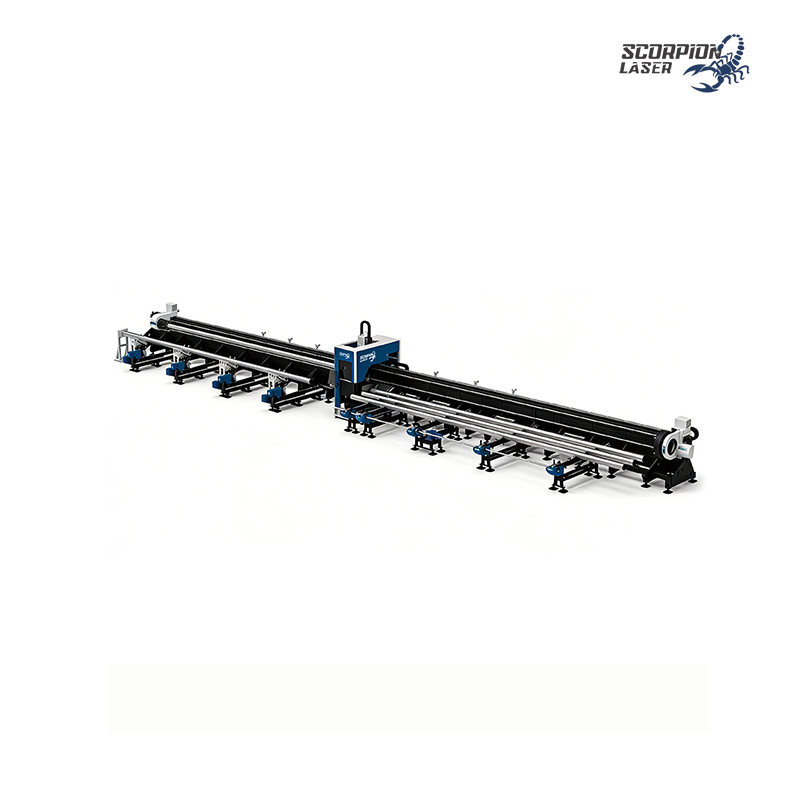

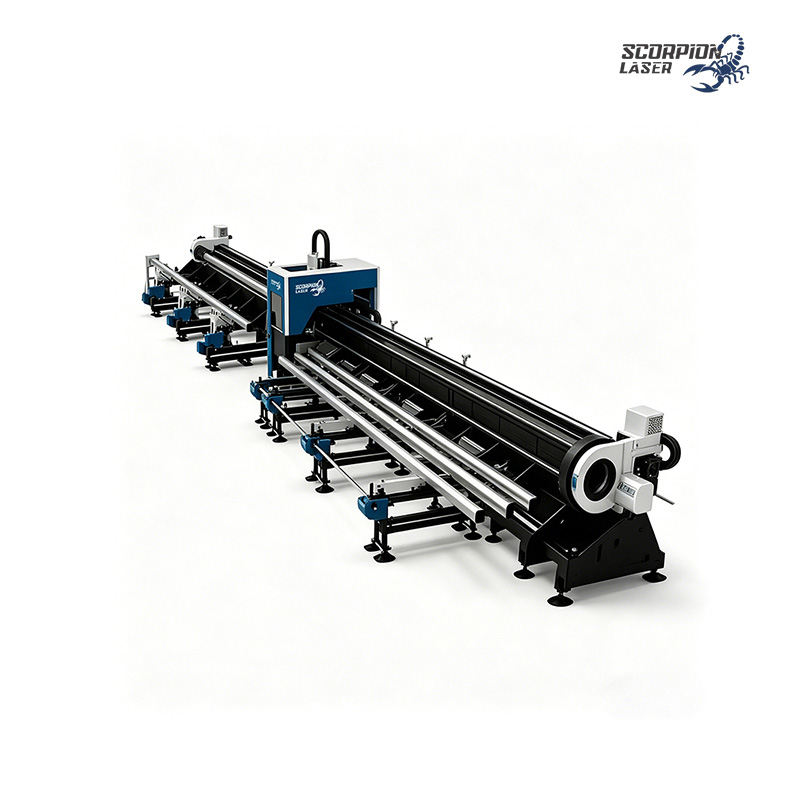

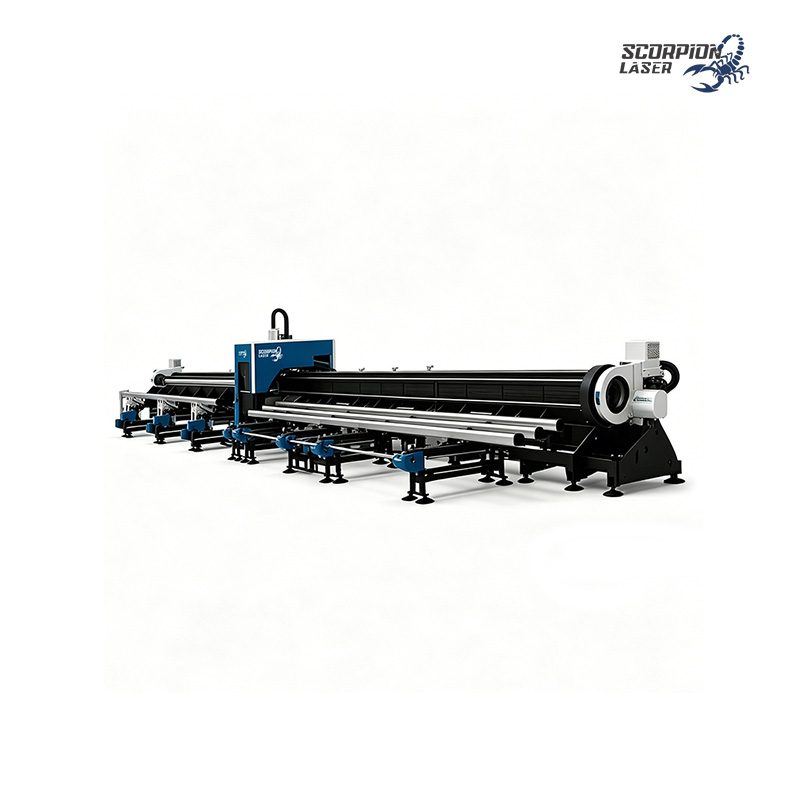

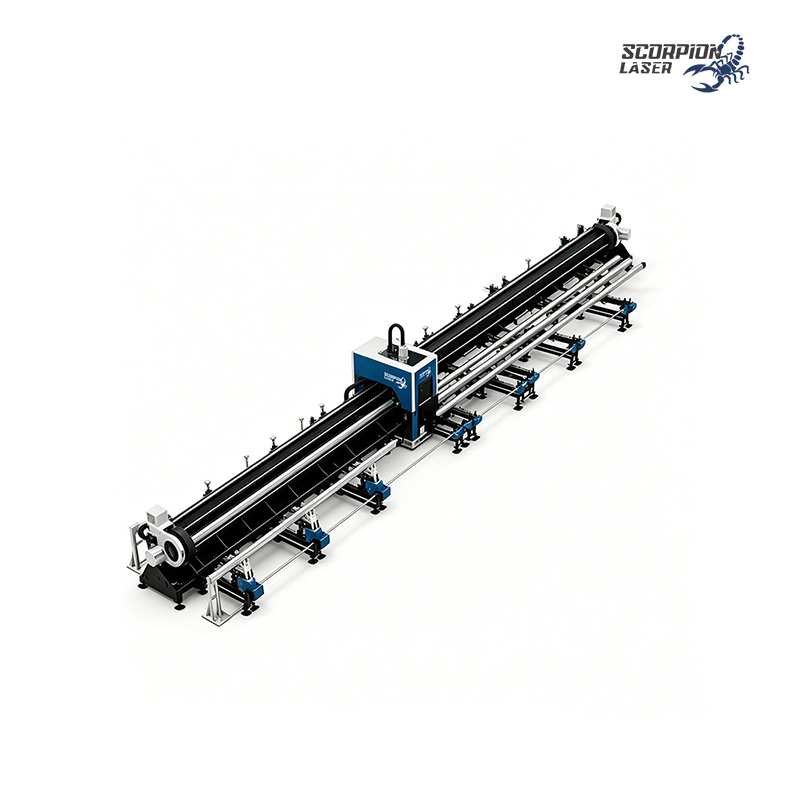

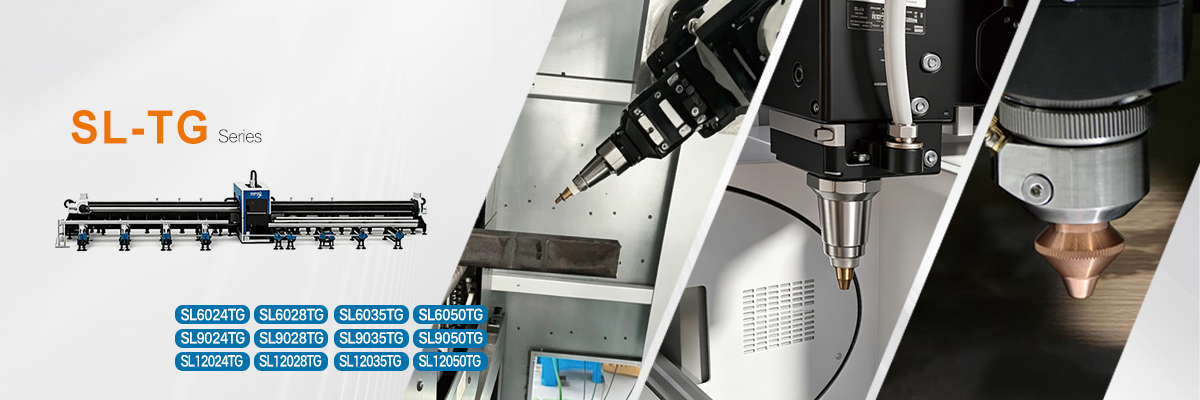

SL-TG Series The three-chuck heavy-duty laser pipe cutting machine is a high-end fiber laser cutting equipment designed for heavy, extra-long and large-diameter pipes. Adopting the design of three-chuck linkage, heavy-duty high-rigidity bed and high-power laser, it features zero remnant material, full-pipe cutting, high load capacity and high precision. It is widely applied in heavy industries such as engineering machinery, steel structures, petroleum pipelines, rail transit, agricultural and forestry machinery.
Three-chuck linkage for zero remnant material & full-length pipe cutting :
Three-chuck relay clamping eliminates cutting blind spots to achieve zero remnant material and raises material utilization by 20%–25%. It cuts 12m pipes in one clamping. Full-stroke support reduces vibration and deflection, keeping both heavy and thin-walled pipes free from deformation.

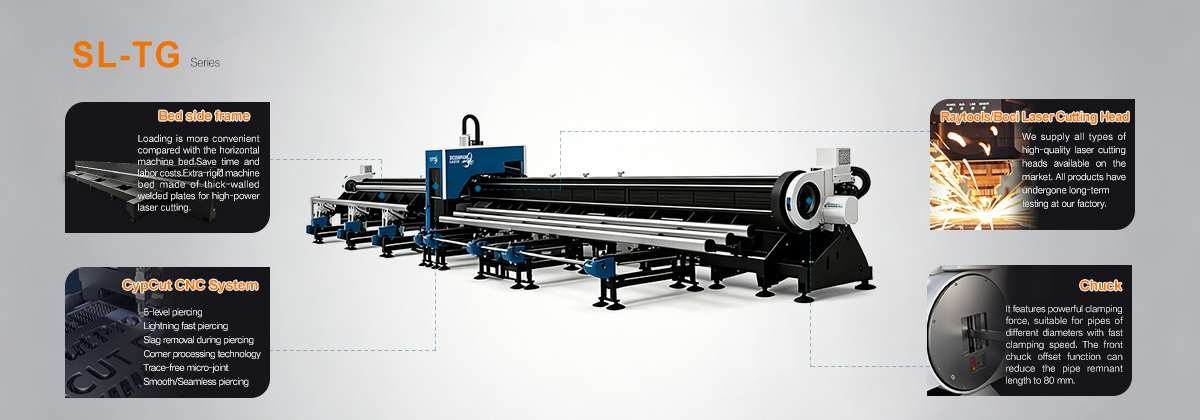

The heavy welded bed and strong clamping support a 2000kg single pipe load, suitable for large-diameter thick-walled pipes and various steel profiles. The 7-axis dynamic feeding system fixes minor pipe deformation, keeping precision steady at ±0.05 mm.
Relay processing allows cutting and material handling to work simultaneously. Flying cutting and intelligent nesting boost batch efficiency by 30%–50%. The optional auto loading/unloading system holds 6 heavy pipes and reduces hoisting work. Han's Laser Smart Equipment Group Co., Ltd.

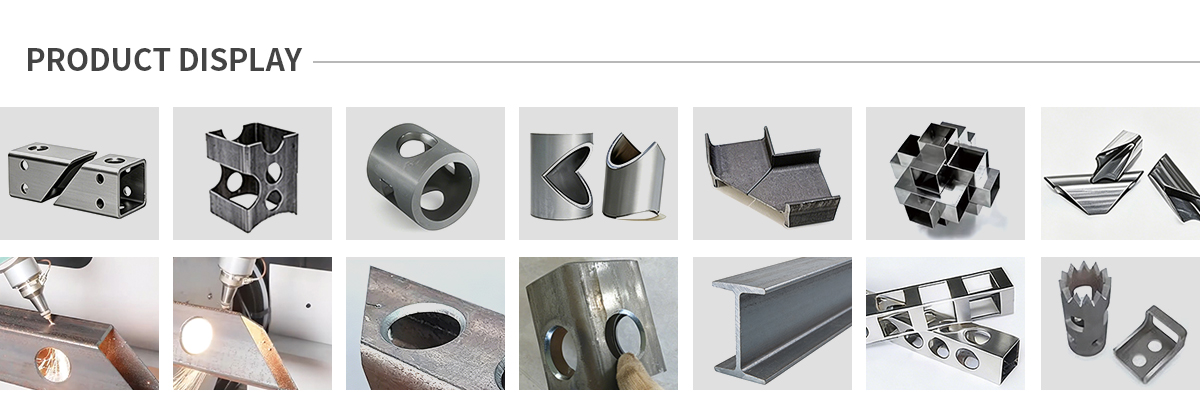

It works with various pipes and steel sections including round, square pipes, H-beams and channel steels. Equipped with high-power laser and anti-high-reflection design, it efficiently processes carbon steel, stainless steel, aluminum alloy, copper and more.
The smart CNC system enables one-click easy operation. Its protective modular design fits dusty sites and extends maintenance cycles by 30%. Collision protection, water cooling and temperature monitoring cut failure rates and prolong service life.
Feature | Specifications |
Model | SL6024T / SL9024TG / SL12024TG |
Laser Power | 1500W - 3000W (Higher options available) |
Minimum Tailing | 0mm |
Positioning Accuracy | ±0.03/1000mm |
Max Operating Speed | 90 m/min |
Chuck Range | 240mm - 500mm (Optional) |
Acceleration | 0.8G |
Expertise: 9 years of laser industry experience with 10+ year veteran technicians.
Quality Assurance: CE, FDA, and ISO 9001 certified. Every SL-TZ machine undergoes rigorous full-line inspection and raw material traceability.
3-Year Global Warranty: We stand behind our quality. Main components (excluding consumables) are replaced free of charge during the warranty period.
24/7 Response: Remote diagnosis within 24 hours and local on-site service support.
Q: What is the benefit of a side-mounted (side-hanging) structure?
A: It offers better stability, saves factory floor space, and facilitates easier loading and unloading of pipes compared to center-mounted models.
Q: How does the SL-TG model achieve zero tail material?
A: Our innovative movable front chuck allows the laser head to reach the "dead zone" of traditional machines, minimizing waste.
Q: Is the machine easy to install?
A: Yes! The SL-TZ is an all-in-one machine with an integrated cabinet. No complex wiring is needed; it's a "plug-and-play" solution.
Q: Do you provide documents for customs clearance?
A: Absolutely. We provide a one-stop service including CE, Packing List, Commercial Invoice, and Sales Contracts.
