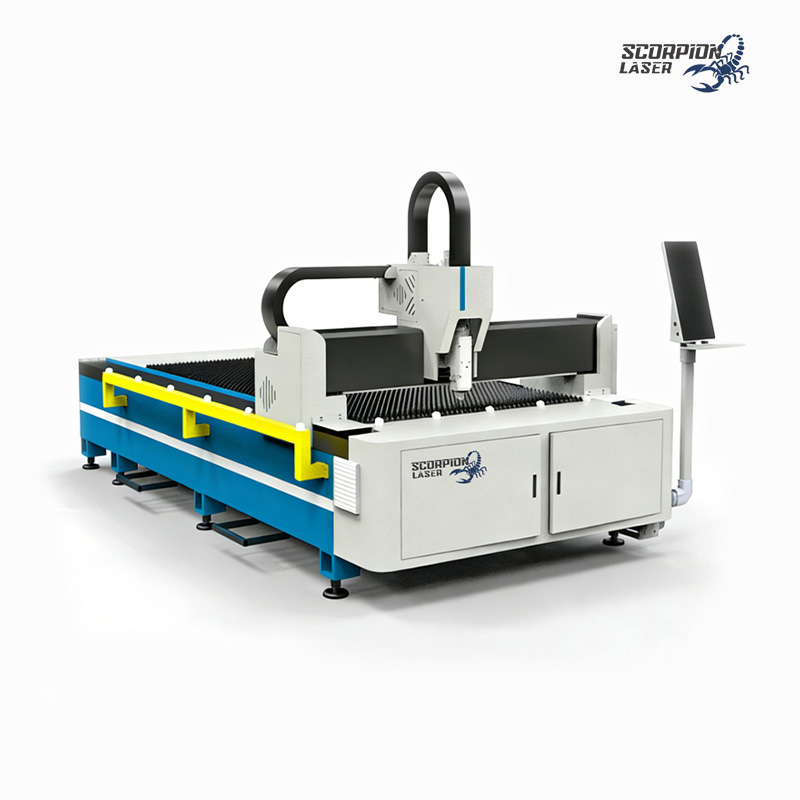

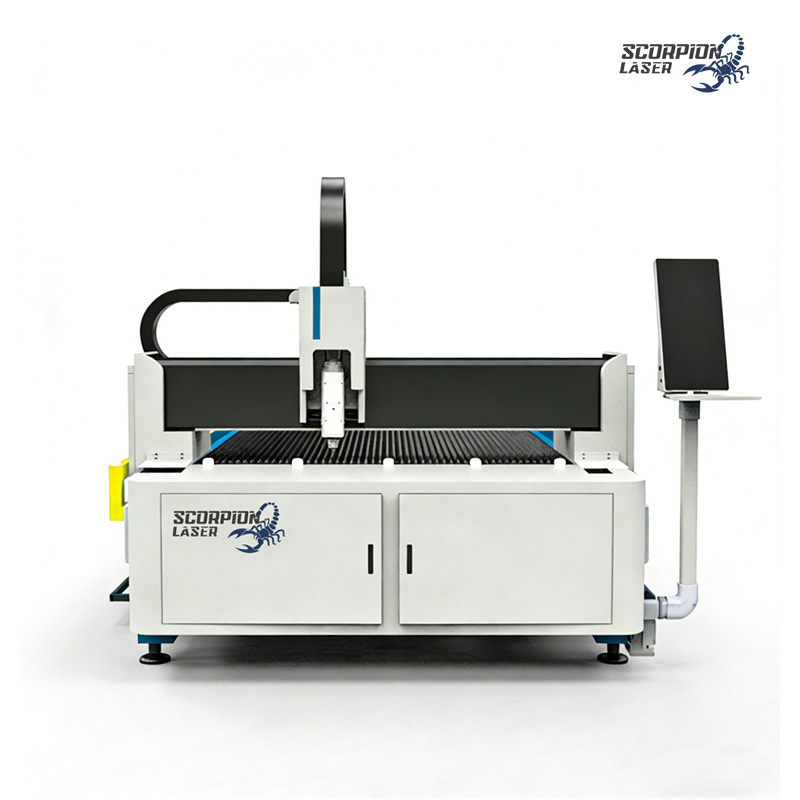

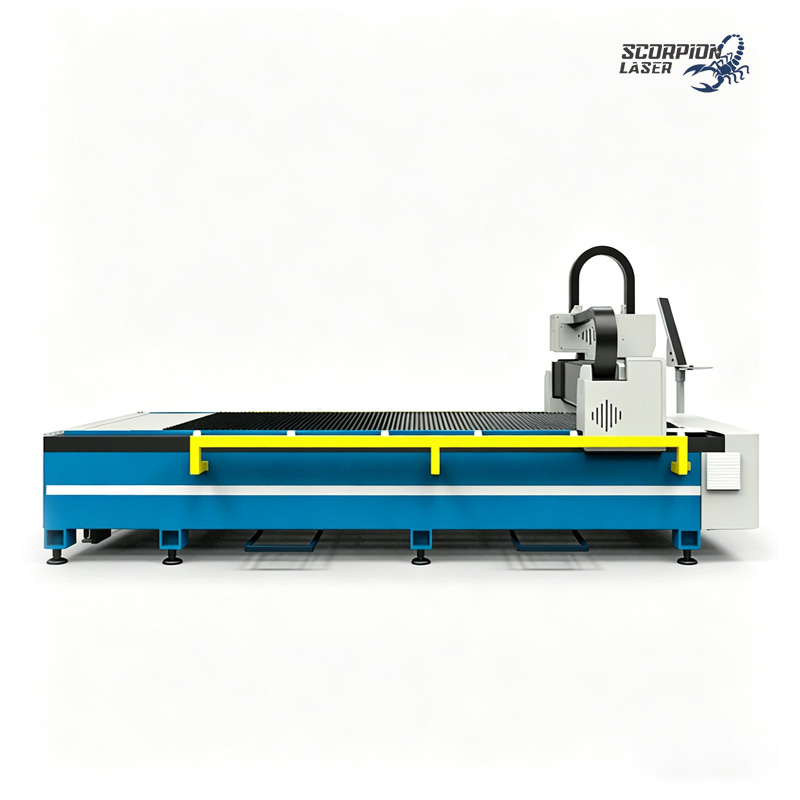

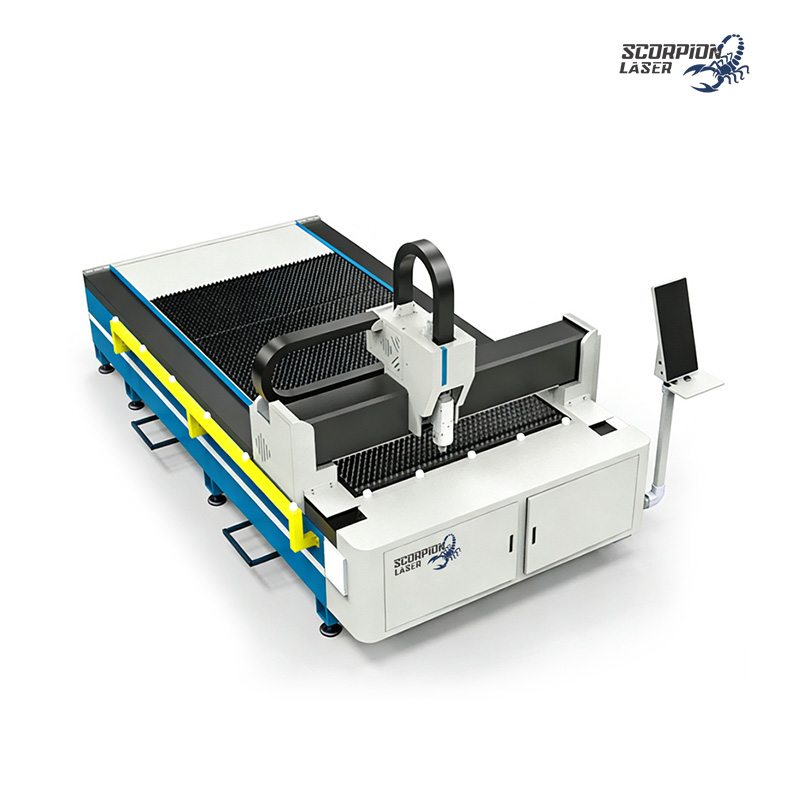

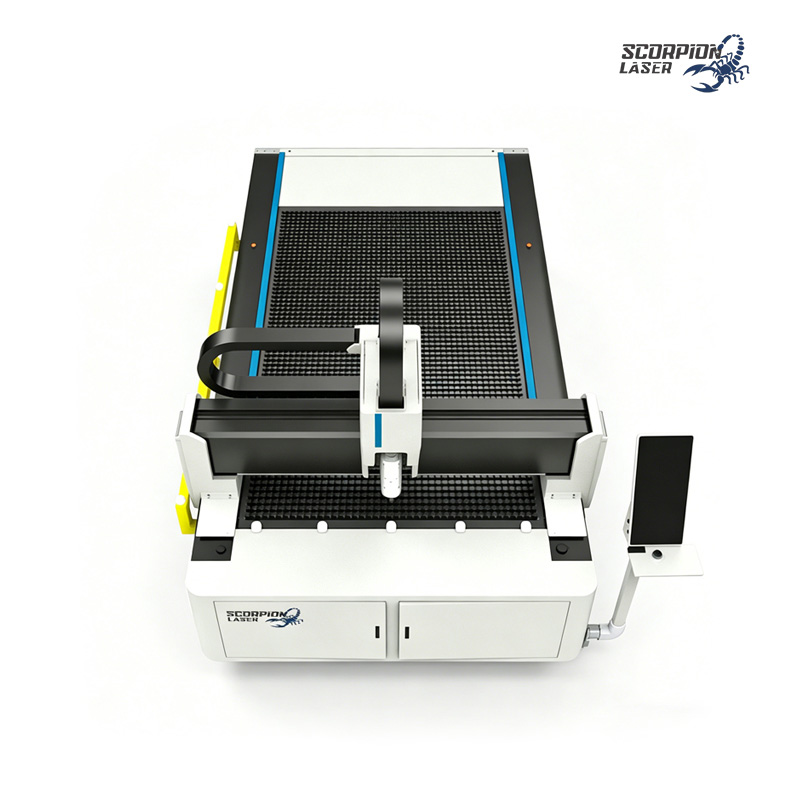

The Scorpion 3015S is engineered to solve the bottleneck of modern manufacturing: balancing speed with precision.
Wide Power Range (1.5kW - 20kW): Whether you are cutting thin sheet metal for advertising or thick plates for heavy machinery, our flexible laser source options (IPG/Raycus/MAX) ensure you only pay for the power you need.
High Dynamic Performance: With a maximum acceleration of 1.2G and running speeds up to 120m/min, the 3015S significantly reduces idle time between cuts, increasing your daily throughput by up to 30% compared to standard models.
Micron-Level Precision: Achieving a repeated positioning accuracy of ±0.02mm, this machine ensures that every part produced meets strict aerospace and automotive tolerances, reducing material waste and secondary finishing.
Customizable Working Area: While the standard 30001500mm bed fits most standard metal sheets, we offer upgrades to **60002500mm** or fully custom sizes to accommodate large-scale fabrication projects.

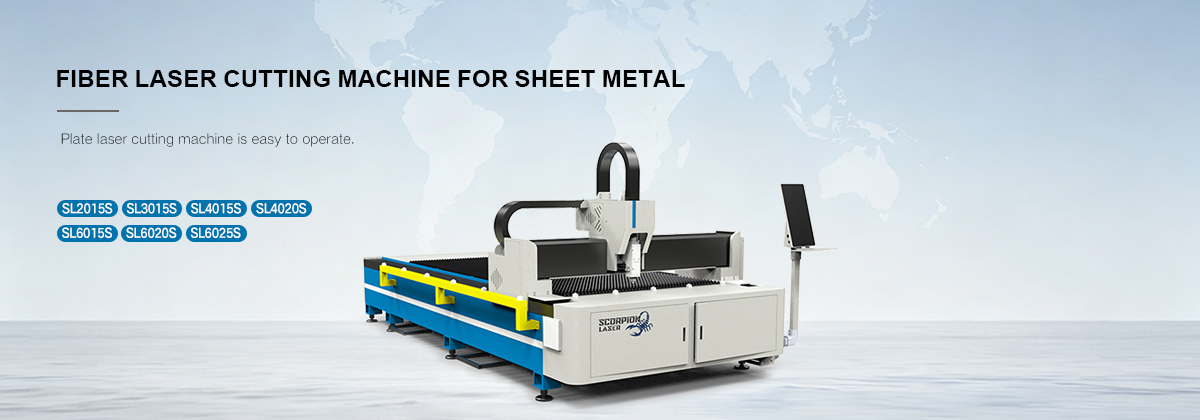

SL3015S is professional laser equipment for cutting and processing sheet metal. It adopts a fiber laser as the cutting source, which delivers higher productivity and cutting accuracy compared with traditional laser technologies.Fiber laser sheet cutting machine is professional laser equipment for cutting and processing sheet metal. It adopts a fiber laser as the cutting source, which delivers higher productivity and cutting accuracy compared with traditional laser technologies.
The Scorpion 3015S is the "workhorse" for diverse industrial sectors. It is optimized for:
Target Industries: Automotive Manufacturing, Aerospace, Kitchenware Production, Advertising & Signage, Electrical Cabinet Manufacturing, and Agricultural Machinery.

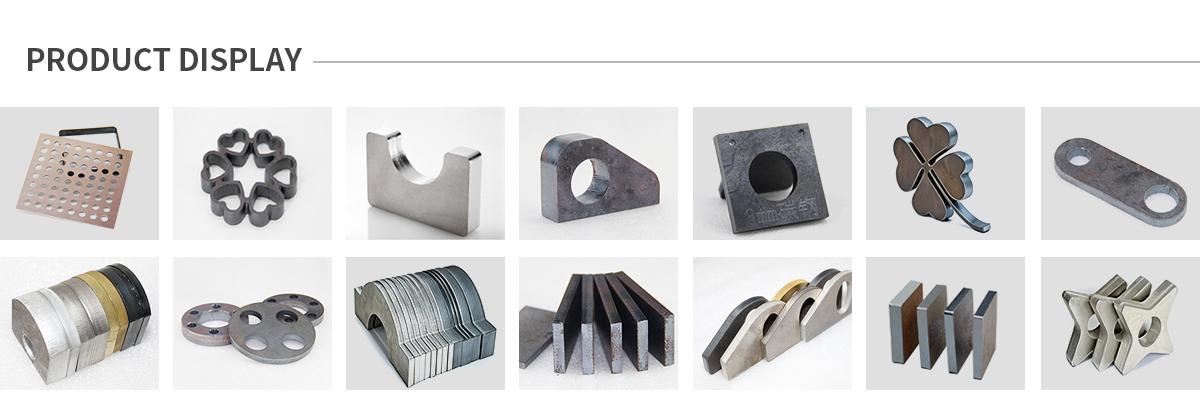

Applicable Materials:
Carbon Steel: High-speed oxygen cutting.
Stainless Steel: Bright surface nitrogen/air cutting.
Non-Ferrous Metals: Aluminum, Brass, Copper, and Galvanized Sheet.
Parameter | Specification |
Model | Scorpion 3015S |
Laser Source Power | 1500W - 20000W (Customizable) |
Standard Working Area | 3000mm × 1500mm |
Optional Working Area | 6000mm × 2500mm (or Customized) |
Max Running Speed | 120 m/min |
Max Acceleration | 1.2G |
Repeated Positioning Accuracy | ±0.02mm |
Voltage & Frequency | Single/Three Phase 220V/380V, 50Hz/60Hz (Transformer available) |
Cooling System | Dual-Temperature Industrial Water Chiller |

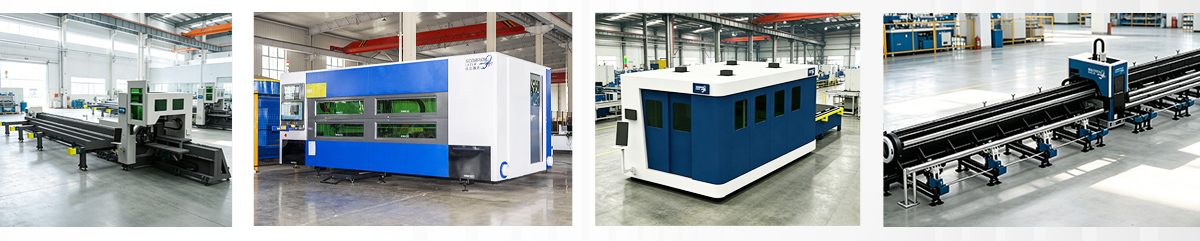

At Scorpion Laser (Jinan Tuochuang Machinery Equipment Co., Ltd.), we don't just sell machines; we provide production solutions.
3-Year Warranty: Comprehensive coverage for the main machine parts.
Installation & Training: We offer on-site installation and detailed operator training to ensure your team can run the machine at full capacity from day one.
24/7 Remote Support: Our multilingual engineering team is available around the clock to troubleshoot software or hardware issues via video call.
Q: What is the maximum cutting thickness for the 3015S?
A: The cutting thickness depends on the laser power selected. For example, a 3kW source can cut up to 20mm carbon steel, while a 20kW source can handle up to 50mm+ plates. Contact us for a detailed cutting parameter chart.
Q: Does the machine support my local voltage?
A: Yes. The standard configuration supports Single/Three phase 220V/380V at 50Hz/60Hz. If your facility uses a different voltage, we will provide a compatible high-quality transformer to ensure stable operation.
Q: How is the machine shipped?
A: The 3015S is designed to fit into standard shipping containers (20GP or 40HQ, depending on the bed size). We handle the packaging with anti-corrosion film and secure vacuum sealing to prevent damage during sea freight.
Q: Is the control software easy to use?
A: Absolutely. We use industry-standard CNC control systems (like CypCut) which are compatible with common CAD files (DXF, PLT, AI). The interface is user-friendly, and we provide full video tutorials.
Don't let slow cutting speeds hold your business back. Invest in the Scorpion 3015S for reliable, high-speed fiber laser cutting.
