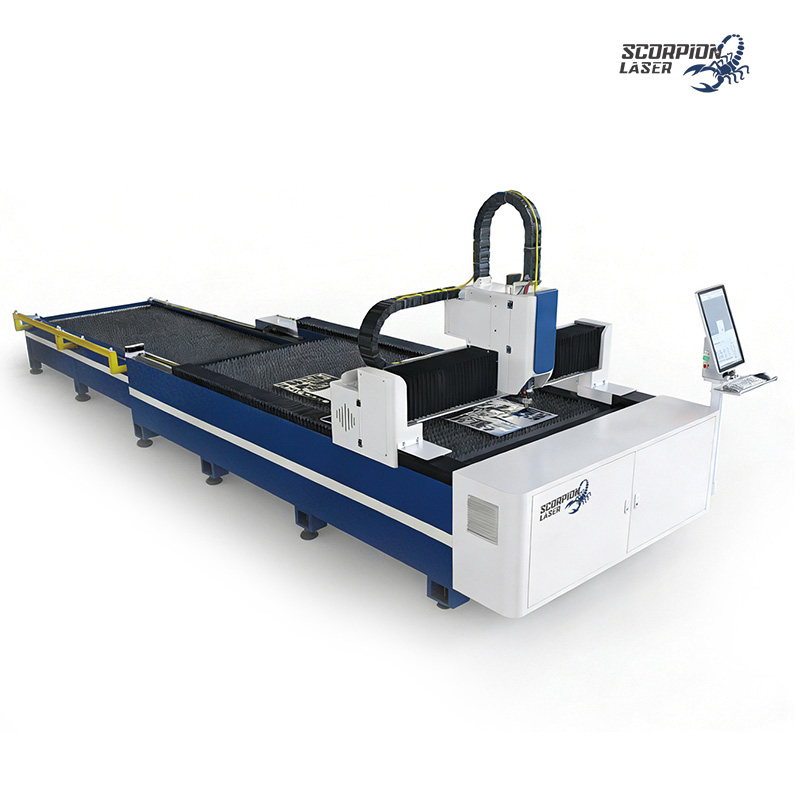

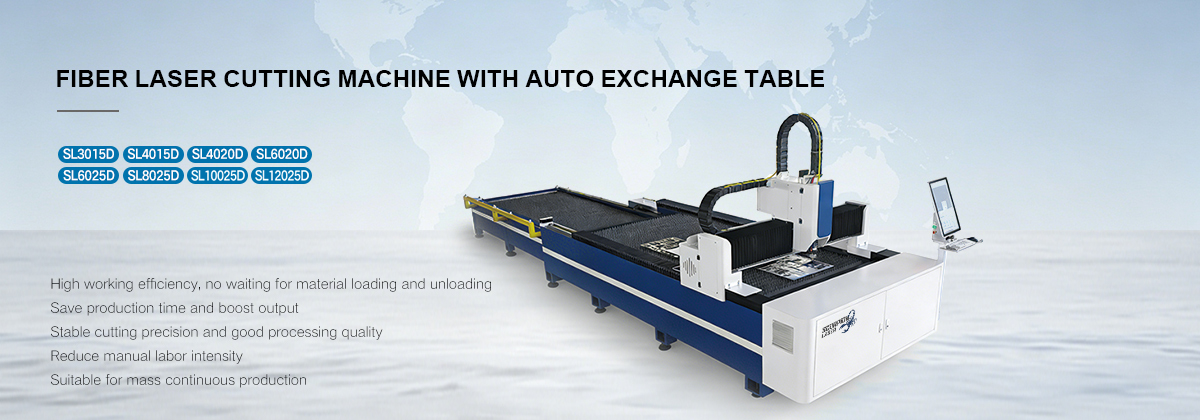

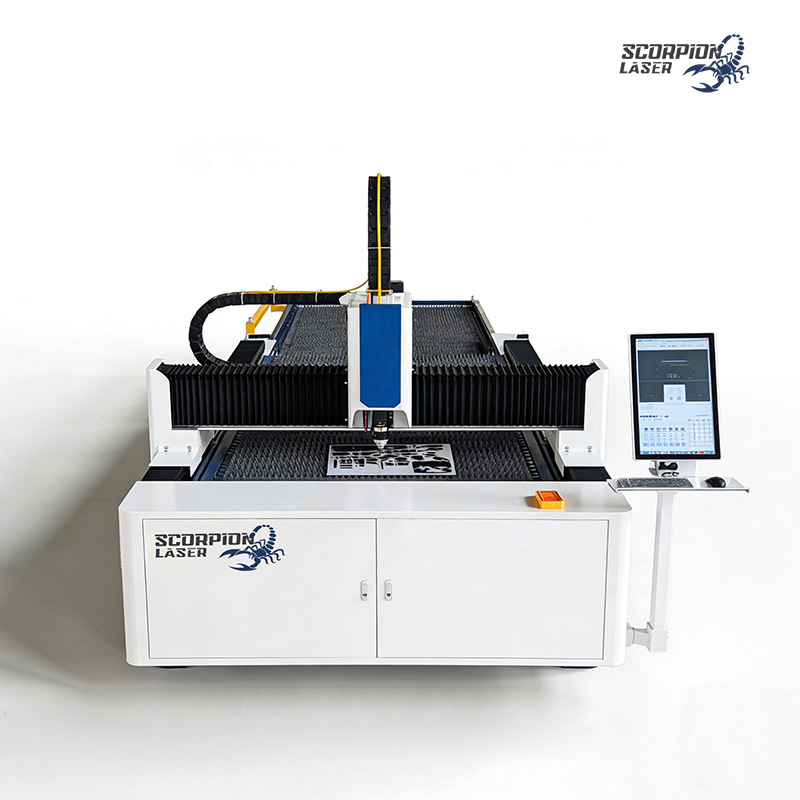

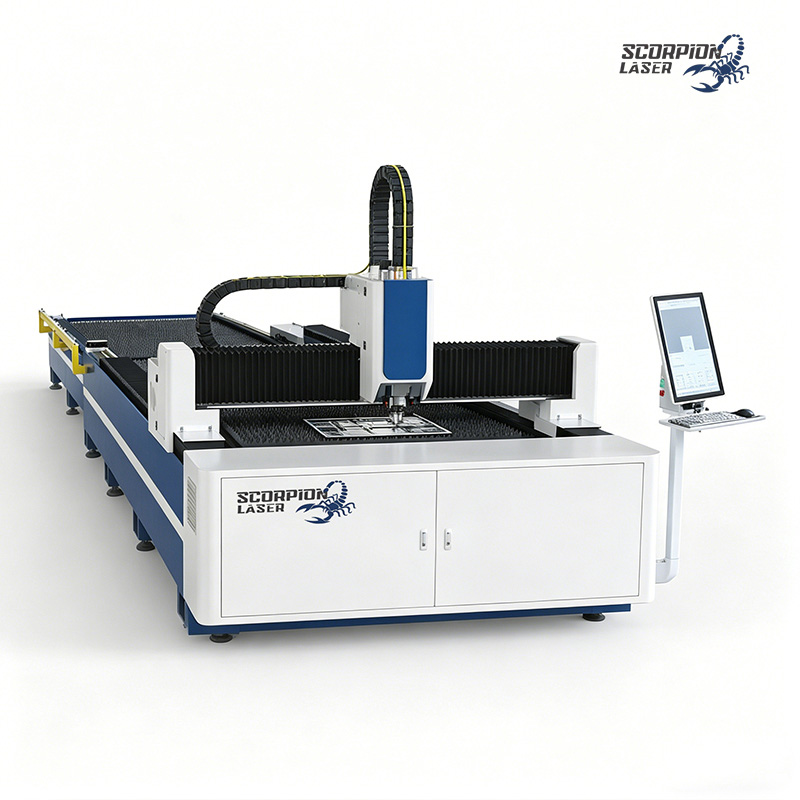

In a high-intensity production environment, every second the laser stops is a cost. The SL-D Series is engineered for businesses that prioritize speed and ease of access:

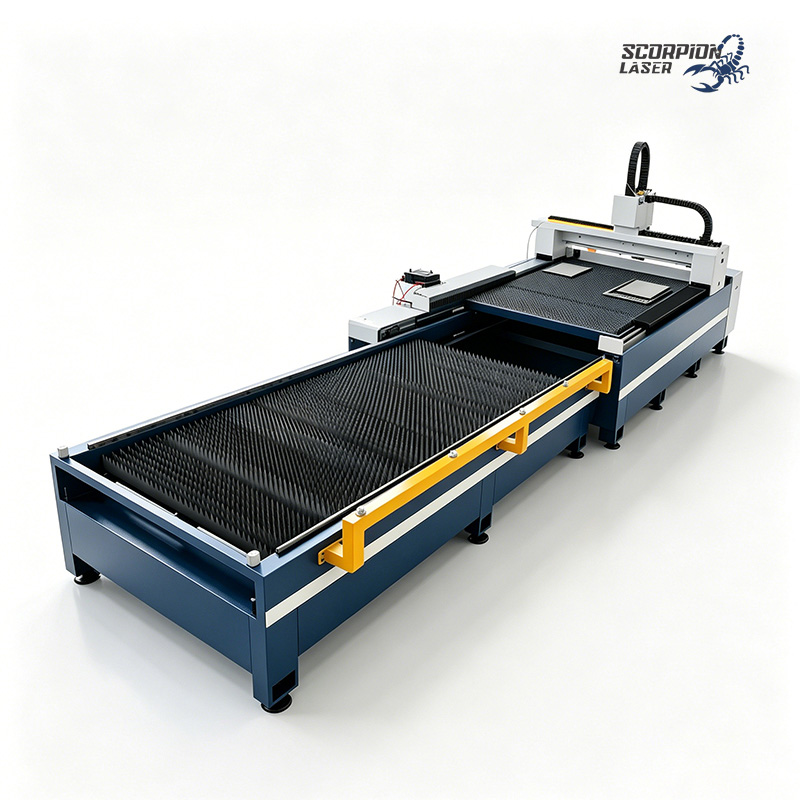

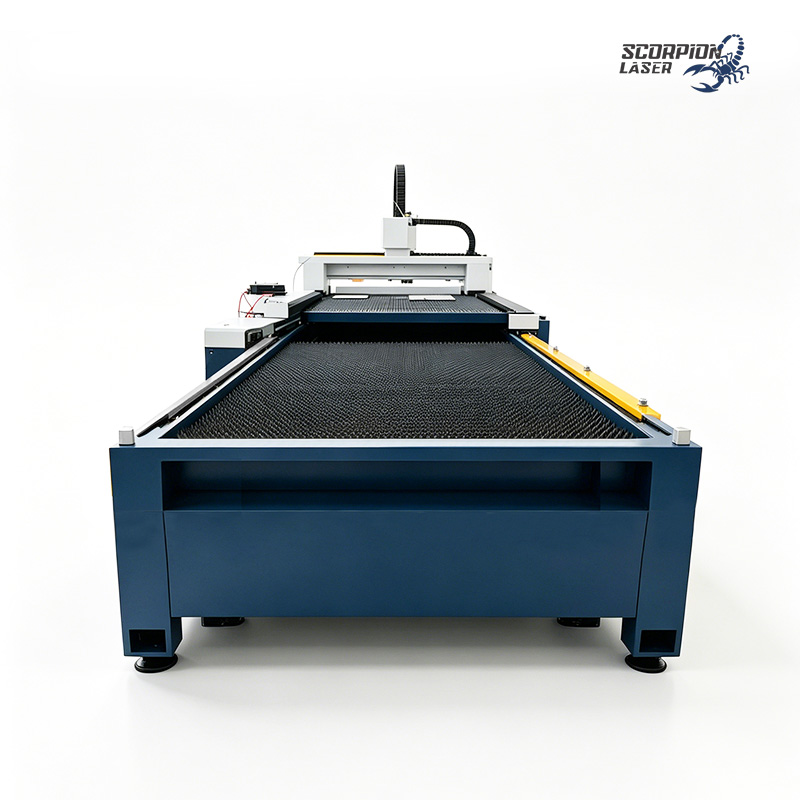

Zero Loading Downtime: While one table is cutting, the operator can safely unload parts and load a new sheet on the second table.

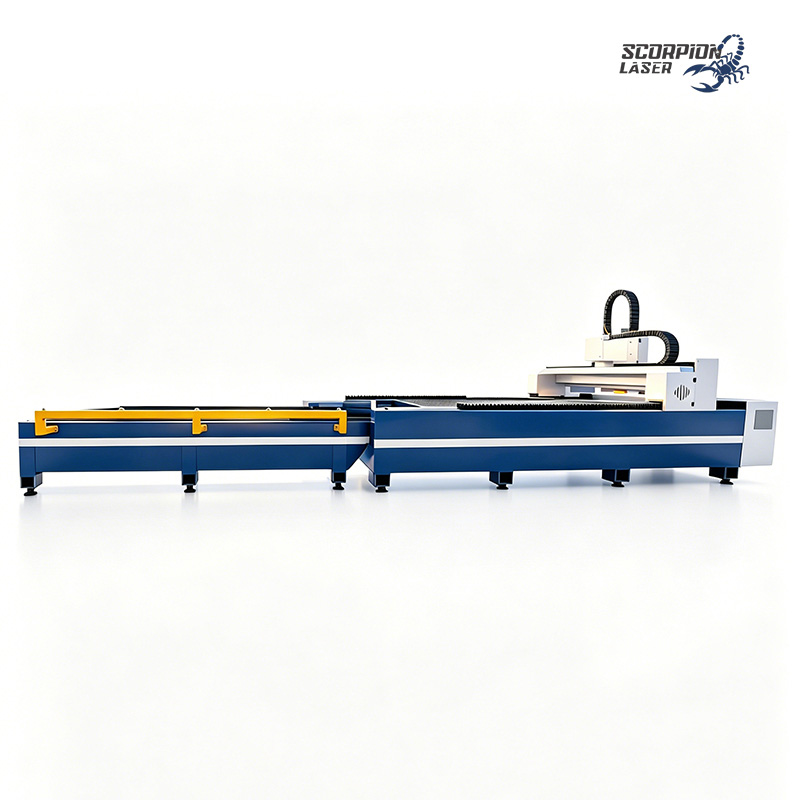

Superior Accessibility: The open-type design allows for easier observation of the cutting process and more flexible material handling for extra-large plates.
Ultra-High Power Capability: Built to handle the most demanding tasks, supporting laser sources from 1.5kW up to a staggering 80kW.
Fast Shuttle Table Exchange: The intelligent dual-platform exchange system completes the swap in as little as 15 seconds, significantly boosting your daily output compared to single-table machines.
Precision Motion Control: Featuring 1.2G acceleration and a maximum running speed of 120m/min, the SL-D series ensures high productivity without sacrificing the ±0.02mm repeatability.

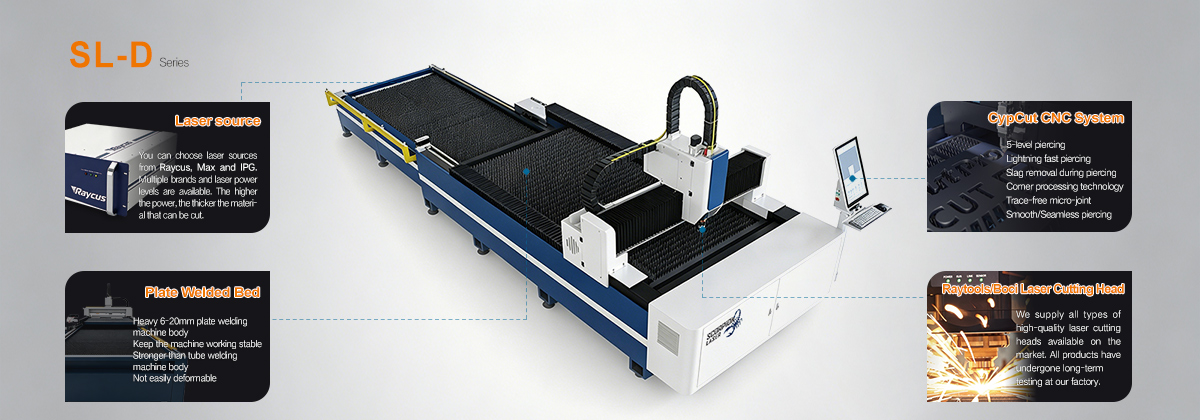

Heavy-Duty Machine Bed: Like all Scorpion Laser machines, the bed is heat-treated to eliminate internal stress, ensuring long-term stability and accuracy under high-speed mechanical loads.

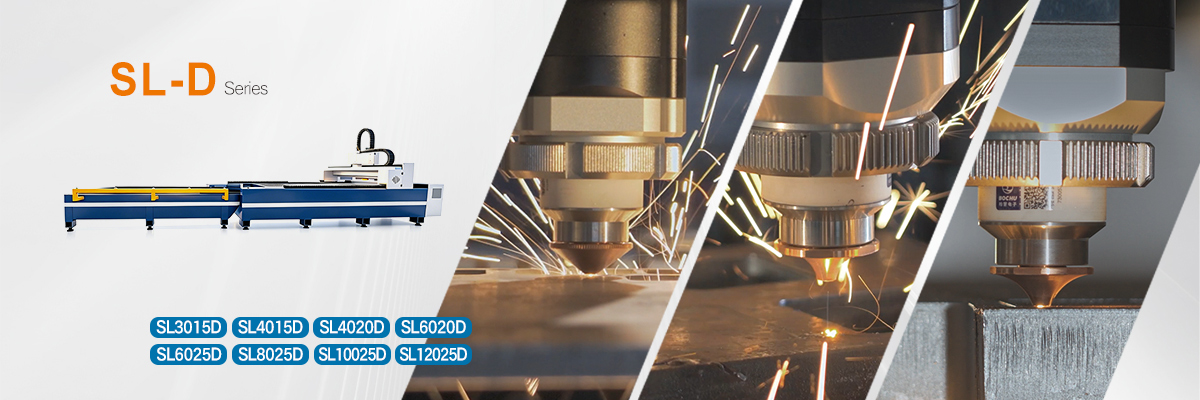

Flexible Processing Formats: Available in standard 3015 sizes up to massive 12-meter (12025D) formats, with full customization available to fit your workshop's specific needs.
Smart Cutting Head Technology: Equipped with auto-focusing laser heads and non-contact sensors to protect your materials and maintain optimal cutting quality on uneven plates.
Specification | Details |
Model | SL3015D - SL12025D (Customizable) |
Working Area | 30151500mm to 120002500mm |
Laser Power Range | 1500W - 80,000W (80kW) |
Maximum Speed | 120 m/min |
Maximum Acceleration | 1.2G |
Positioning Accuracy | ±0.02mm (Repeated) |
Table Type | High-Speed Dual Exchange / Shuttle Platform |
9 Years of Manufacturing Excellence: Based in Jinan, we are a leading manufacturer committed to Industry 4.0 intelligent laser solutions.
Top-Tier Components: We integrate global brands like Yaskawa, Hiwin, and S&A to ensure your machine performs consistently in harsh industrial environments.
Global Trust: With CE, FDA, and ISO 9001 certifications, we export to over 50% of the Eastern European market, as well as South America and SE Asia.
Unrivaled Support: Enjoy a 3-year warranty and lifetime technical support from our team of graduate-level R&D engineers.
Q: Why choose an open-type exchange table machine over a fully enclosed one?
A: The open design (SL-D) offers better visibility, easier access for manual loading/unloading, and is generally more cost-effective if a full laser safety enclosure is not a strict requirement for your facility.
Q: How long does the table exchange take?
A: The shuttle system is highly optimized and can complete a full table swap in approximately 15-20 seconds.
Q: Can the SL-D series handle ultra-thick plates?
A: Absolutely. With power options up to 80kW and a heavy-duty frame, it is specifically designed for high-speed cutting of both thin sheets and ultra-thick carbon/stainless steel plates.
Q: Is there any risk of deformation in the machine bed over time?
A: No. Our beds undergo a professional 600°C annealing process to relieve stress, ensuring the frame remains perfectly aligned for years of heavy use.
