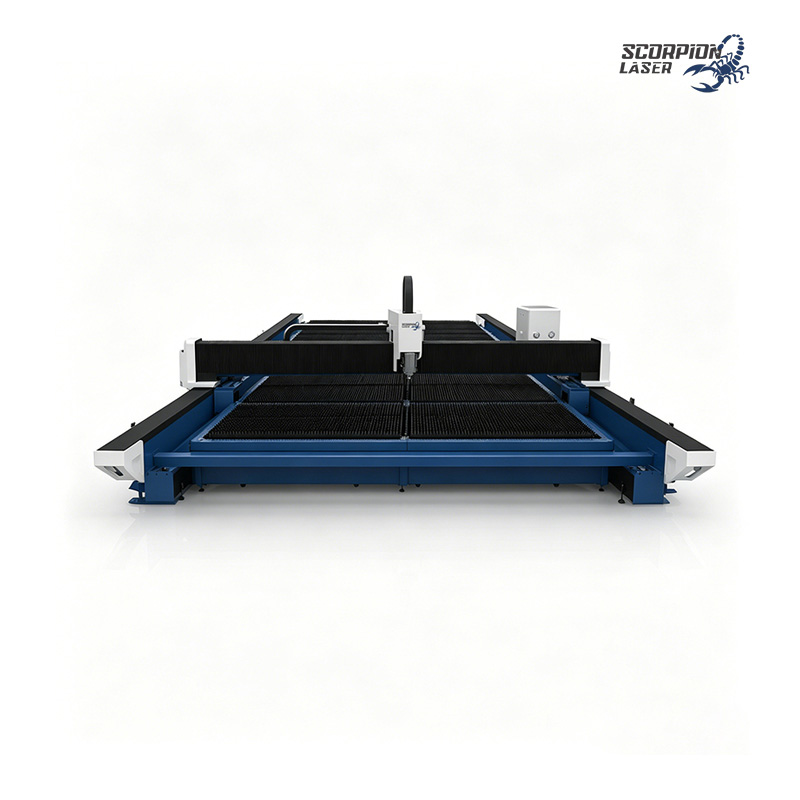

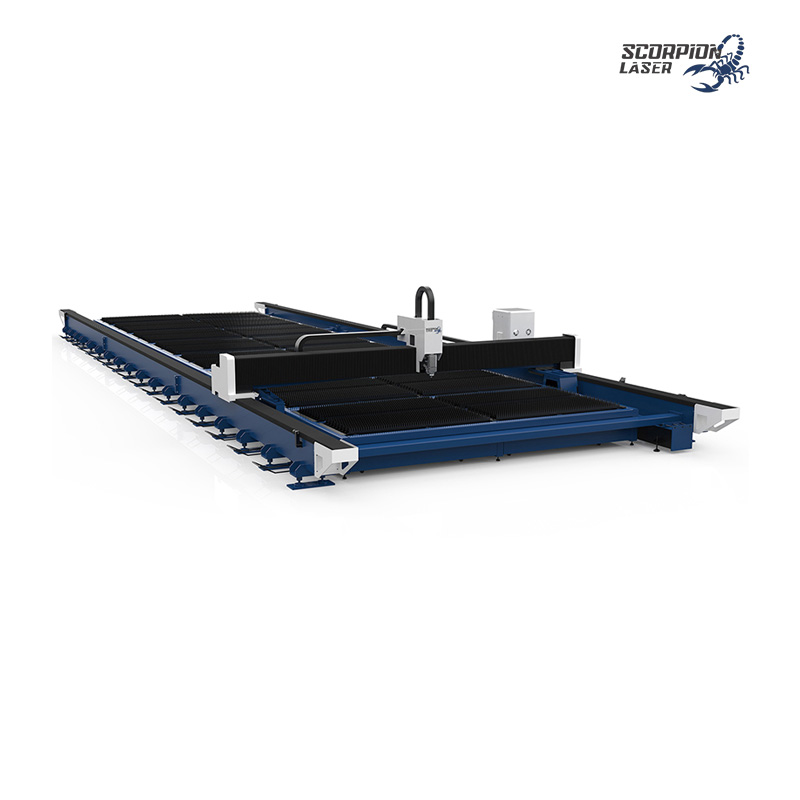

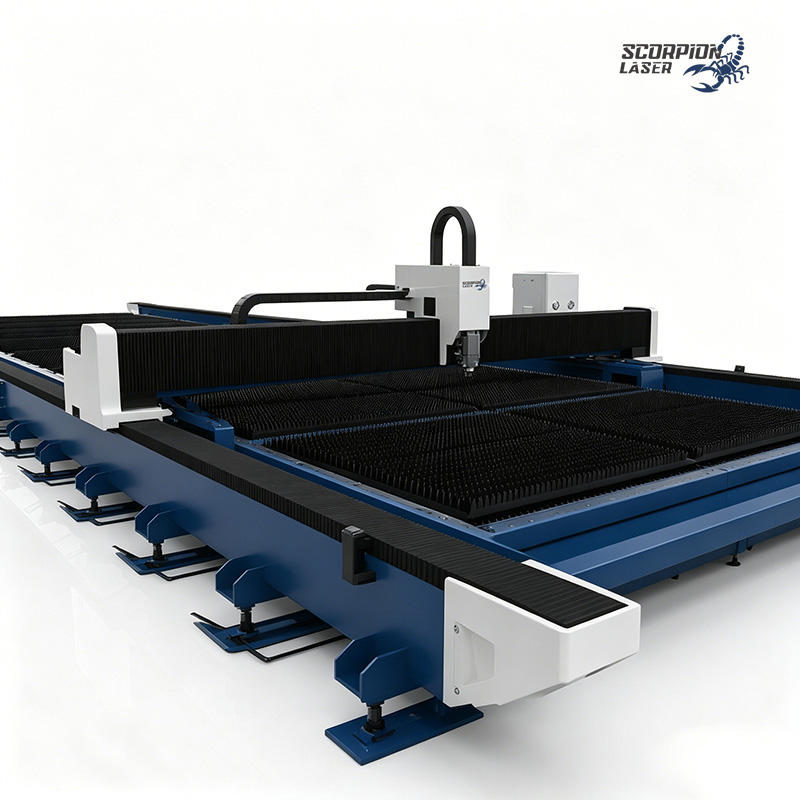

Large-scale manufacturing often struggles with plate handling, thermal deformation, and the complexity of beveling for welding. The Scorpion Laser SL-G Series provides a seamless solution:
Batch Processing Power: Customize your bed from 6m to 32m to cut entire metal sheets in one go, eliminating the time wasted on frequent board replacement.
Complex Geometry: Integrated 3D Beveling capability allows for V, X, and Y-shaped bevels, drastically reducing post-processing time for welding.

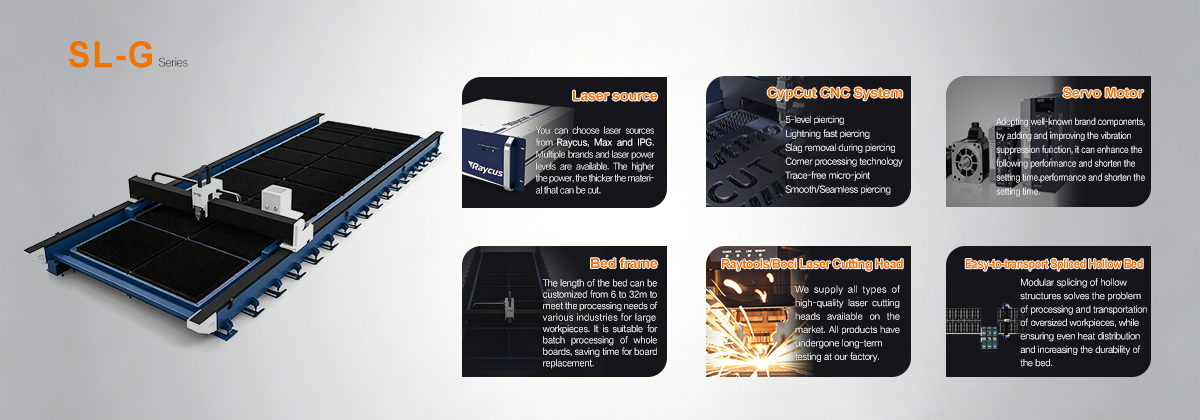

Unrestricted Power: Supports the most advanced laser sources from 3kW up to 80kW for ultra-thick plate penetration.

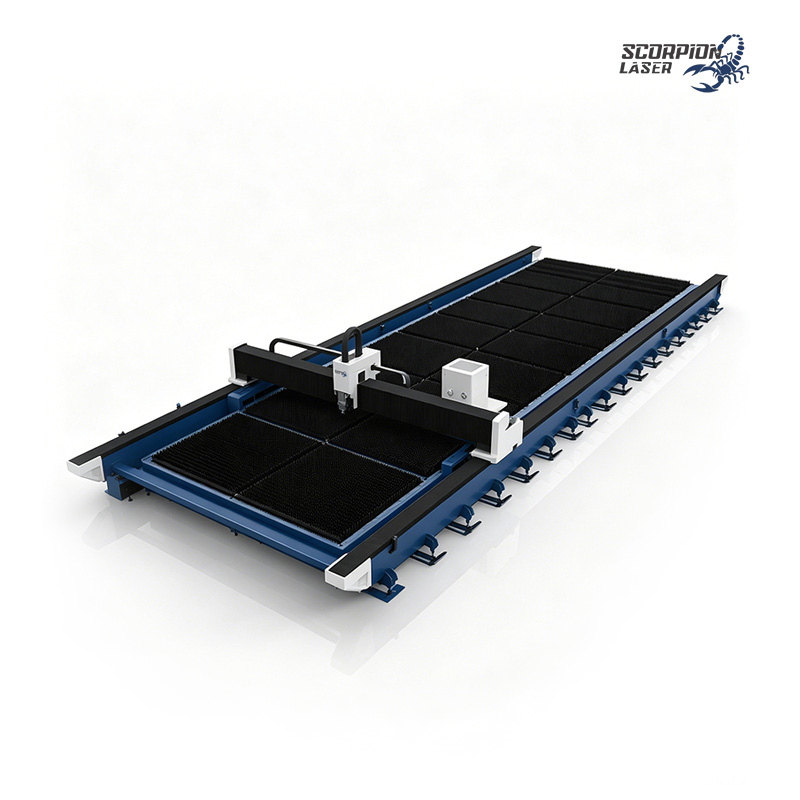

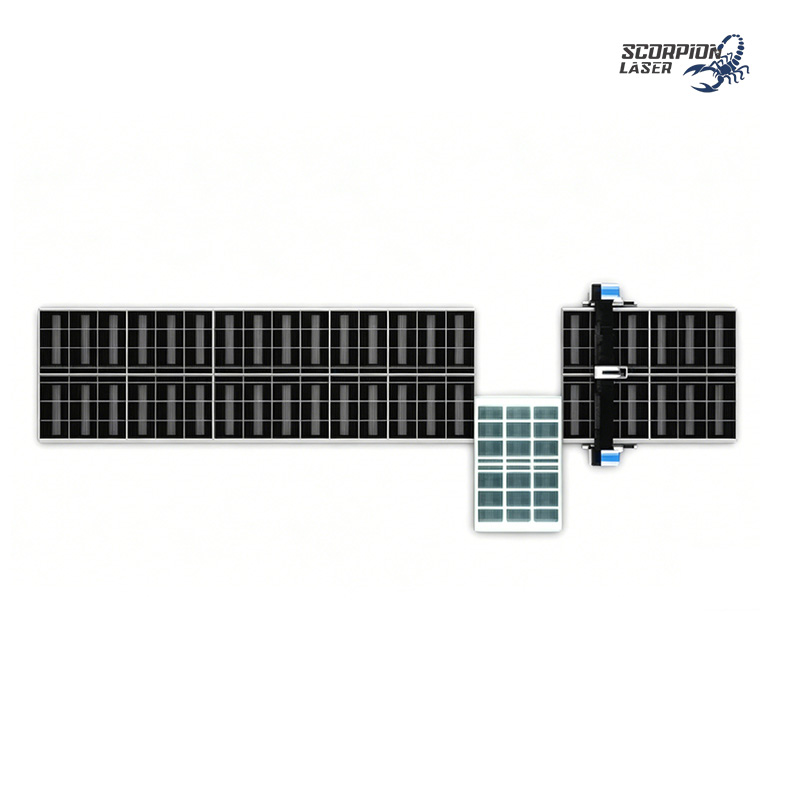

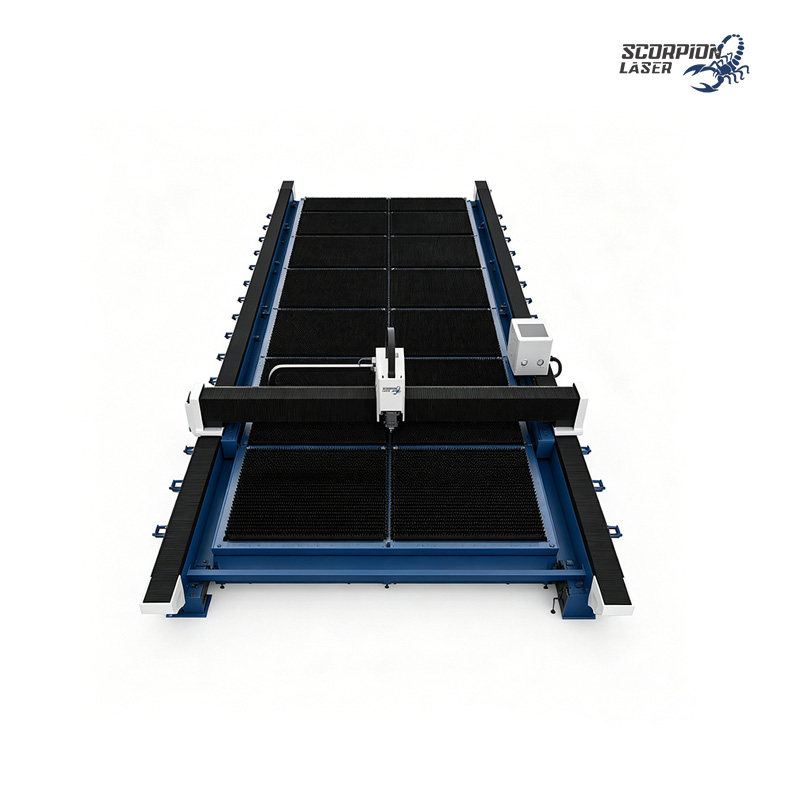

Modular Spliced Hollow Bed: Our innovative hollow structure ensures even heat distribution, preventing the bed from warping under high-power laser heat. The modular design also solves the logistical nightmare of transporting oversized equipment.
Dual Dust Removal System: Features a partitioned exhaust device that automatically follows the laser head to capture smoke at the source, combined with side-mounted high-diameter evacuation for a truly smoke-free workshop.
Active Safety - Laser Light Curtain: Your operators' safety is our priority. A high-sensitivity laser safety screen is mounted on the beam, instantly stopping operation if someone enters the danger zone.
Cypcut Remote Control System: Manage parameters and troubleshoot issues remotely. One PC can control multiple units, maximizing your factory's efficiency.

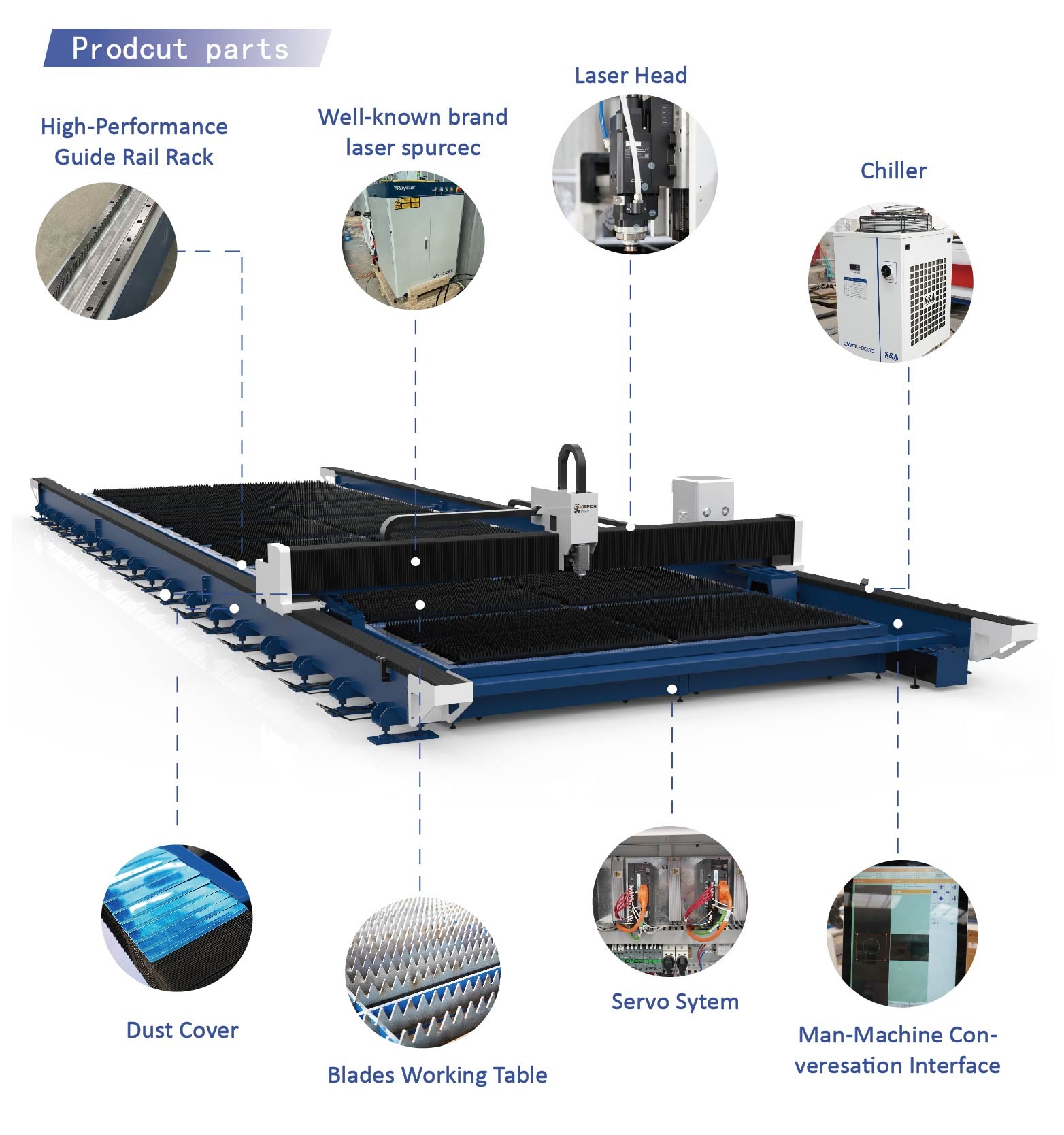

Precision Motion Components: Equipped with Japan Fuji Dual Servo Drives and Taiwan YYC Gears (high compressive strength/low thermal sensitivity) for stable performance on an ultra-large scale.
Specification | Details |

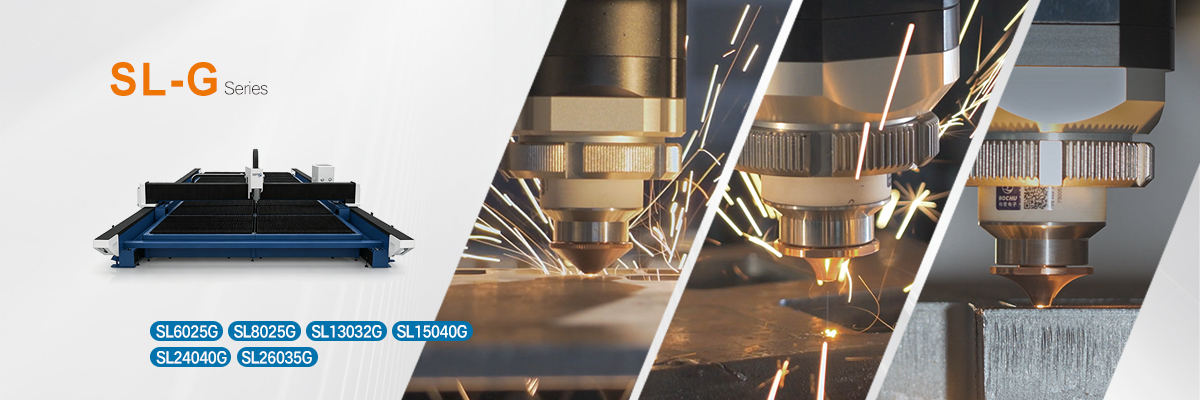

Model | SL6025G to SL26035G (Customizable up to 32m) |
Working Area | Width: 2.5m - 5m |
Laser Power | 3000W - 80,000W (80kW) |
Bevel Cutting | Professional 3D Bevel (Optional) |
Max Running Speed | 80 m/min |
Acceleration | 0.8G |
Positioning Accuracy | ±0.1mm (Optimized for Large Format) |
Bed Structure | Modular Spliced Hollow Bed |
9 Years of Industry Expertise: Scorpion Laser (Jinan Tuochuang) specializes in high-end intelligent laser solutions for Industry 4.0.
Top-Tier Global Partners: We use only the best components from HIWIN (Taiwan), S&A (China), and Yaskawa (Japan).
Worry-Free Warranty: 3-year warranty on main components. We provide new parts for non-human broken issues and offer 24/7 online technical support.
Safe Logistics: Fumigated wooden cases with pearl wool wrapping ensure your machine arrives rust-proof and intact.
Q: How do you transport a 32-meter long machine?
A: Our SL-G series uses a modular spliced bed design. This allows us to ship the machine in standard containers, reducing shipping costs and simplifying onsite assembly.
Q: Is the hollow bed better than a solid bed for high power?
A: Yes. For 12kW+ power, a hollow bed provides better heat dissipation and prevents thermal deformation, ensuring the machine maintains accuracy over years of use.
Q: What industries benefit most from the SL-G series?
A: It is widely used in aerospace, shipbuilding, steel structure construction, and heavy machinery where large-scale precision is required.
Q: Can this machine handle bevel cutting for welding?
A: Yes, the SL-G supports professional 3D beveling, allowing for precise angles on thick plates, which is essential for high-quality welding preparation.
Get a Custom Layout Design - Let our engineers design the perfect 20m+ bed configuration for your workshop.
