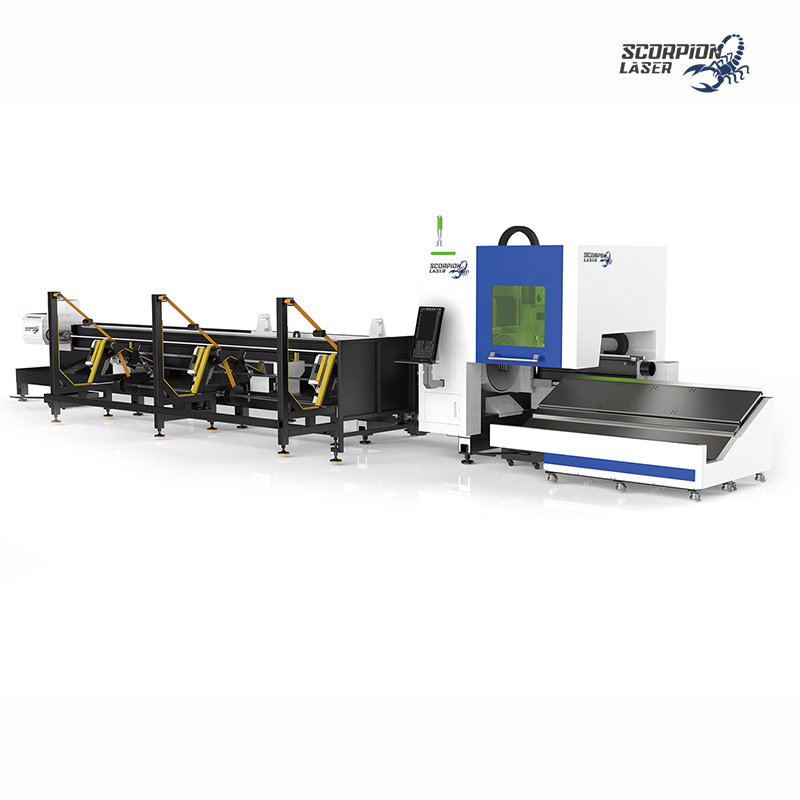

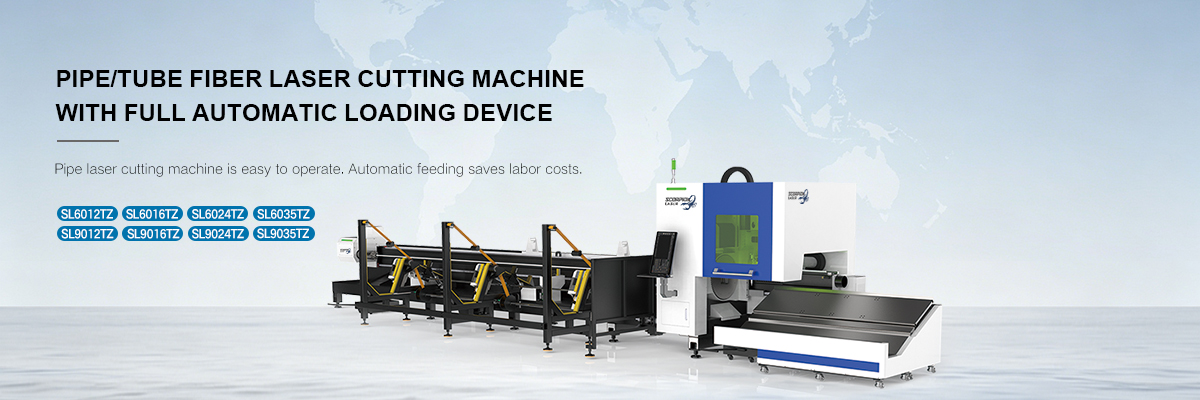

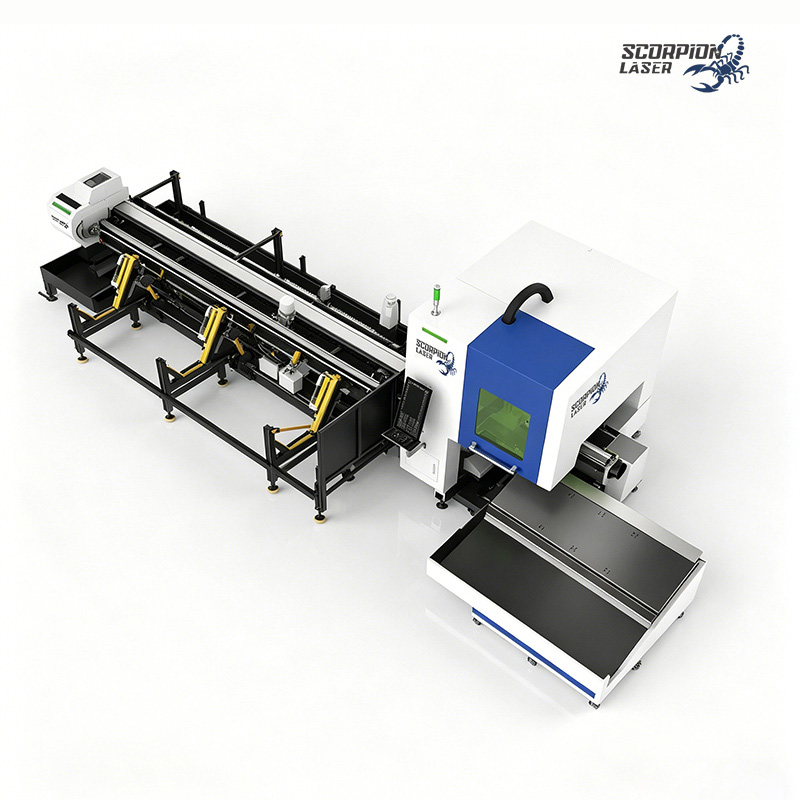

In pipe fabrication, every centimeter of wasted tailing represents lost profit. Traditional 2-chuck machines often leave 150mm-200mm of waste. The SL-TZ Series is designed to solve this:
Cost Efficiency: Achieve ≥60mm ultra-short tailing, significantly reducing raw material costs.
Space Optimization: The integrated electric cabinet and side-hanging bed design save up to 20% floor space compared to traditional models.
Fast Deployment: No complex electrical installation required—use it directly upon arrival.

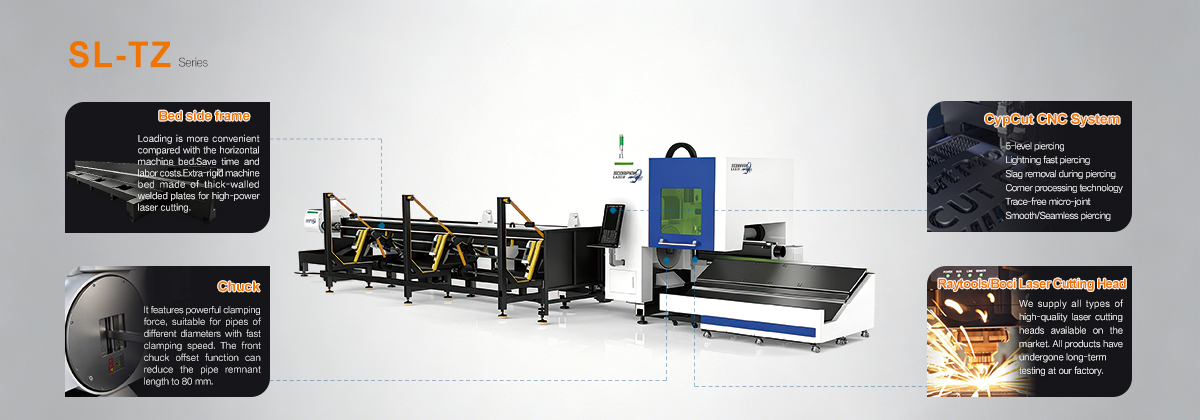

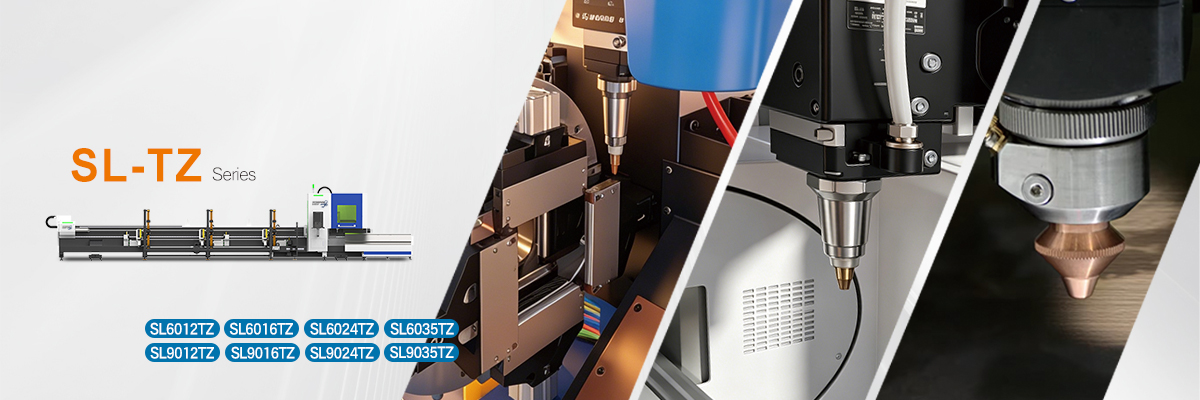

Movable Front Chuck Technology: Unlike fixed systems, our front chuck moves to allow the laser head to cut closer to the end of the pipe, achieving the industry-leading 60mm tailing limit.

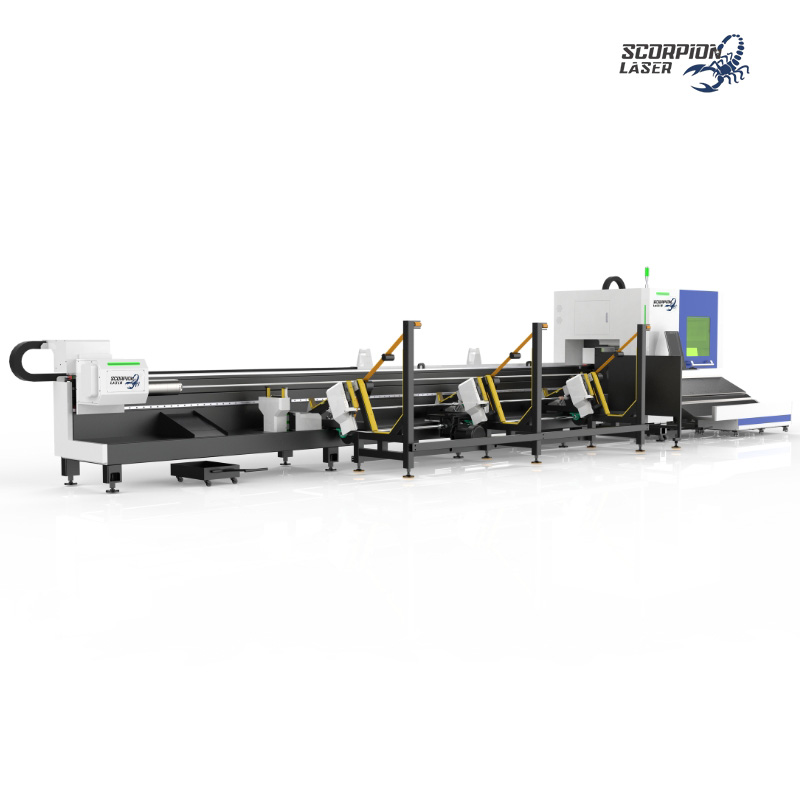

Side-Hanging Integrated Bed: The stacked welded bed undergoes annealing and vibration aging to eliminate internal stress. This ensures the machine maintains ±0.02mm positioning accuracy even during 0.8G acceleration.
Intelligent CNC Ecosystem: Equipped with FSCUT professional pipe cutting software, featuring automatic edge-searching, real-time nesting, and automatic focus adjustment.

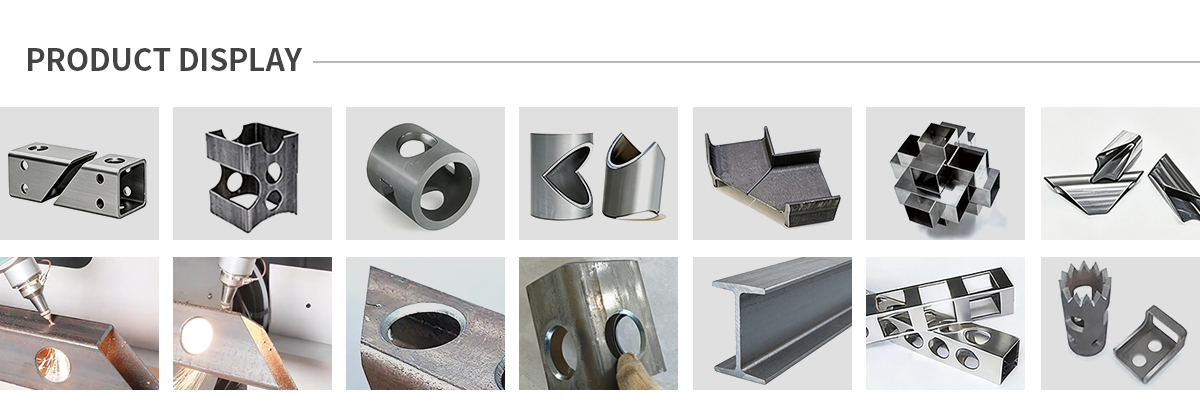

Versatile Profile Processing: Easily handles Round, Square, Oval, U-shape, L-shape, and H-steel with high-speed pneumatic self-centering chucks.
Feature | Specifications |
Model | SL6012TZ / SL9024TZ / SL12035TZ |
Laser Power | 1500W - 3000W (Higher options available) |
Minimum Tailing | ≥60mm (Ultra-Short) |
Positioning Accuracy | ±0.05/1000mm |
Max Operating Speed | 90 m/min |
Chuck Range | 120mm - 900mm (Optional) |
Acceleration | 0.8G |
Expertise: 9 years of laser industry experience with 10+ year veteran technicians.
Quality Assurance: CE, FDA, and ISO 9001 certified. Every SL-TZ machine undergoes rigorous full-line inspection and raw material traceability.
3-Year Global Warranty: We stand behind our quality. Main components (excluding consumables) are replaced free of charge during the warranty period.
24/7 Response: Remote diagnosis within 24 hours and local on-site service support.
Q: What is the benefit of a side-mounted (side-hanging) structure?
A: It offers better stability, saves factory floor space, and facilitates easier loading and unloading of pipes compared to center-mounted models.
Q: How does the SL-TZ achieve 60mm short tailing?
A: Our innovative movable front chuck allows the laser head to reach the "dead zone" of traditional machines, minimizing waste.
Q: Is the machine easy to install?
A: Yes! The SL-TZ is an all-in-one machine with an integrated cabinet. No complex wiring is needed; it's a "plug-and-play" solution.
Q: Do you provide documents for customs clearance?
A: Absolutely. We provide a one-stop service including CE, Packing List, Commercial Invoice, and Sales Contracts.
